201 Stainless Steel Streamline Tube

Since 2003, A.E.D. METAL PRODUCTS has been supplying a custom streamline, egg and oval tube product that really sets us apart from the traditional streamline tubing.

How’s it different? The traditional streamline is produced by a cold drawn process in short random lengths and only in 4130 chrome moly, whereas our High Performance streamline is produced by a roll form process, in which round tubes are sent through a progressive series of rollers and dies.

Our roll form process also allows more wall thickness selections as the streamline tubes maintain the same wall thickness as the parent round tube. Additionally, we can make our “homebrew” in other materials besides 4130. We have successfully produced these shapes in mild steel (ERW and DOM), Docol R8, aluminum, stainless steel, and CP grades of titanium.

PLEASE NOTE:

We can run full lengths or as little as 6-feet.

It is important to understand that these profiles DO NOT match exactly to the old "traditional" profiles of the past. The trailing edge (small radius on the minor dimension) has a larger radius. If you are trying to match components from the past, please mention at the time of the quote.

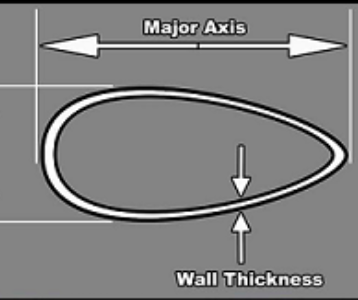

There are no CAD drawings, and there are no tolerances on the finished dimensions. The majors and minors listed are essentially averages of the various material grades and wall thicknesses. They will be close to the listed sizes, but material and wall thickness will slightly affect the finished results.

There are no material test reports (sometimes referred to as "material certifications") available for the finished roll-formed material. Test reports are available for most of the original round tubes at an additional cost. Be sure to discuss with your sales representative at the time of order.

Subject to the availability of round tube.
